CERTIFIED PRODUCT FOR YOUR QUALITY STEEL VINEYARD
WHAT’S THE CORTEN STEEL?
Poles for Vineyards made in Cor-ten Steel – Hot dip galvanized Steel – Pre galvanized Steel (on request)
SIKA poles for vineyards are obtained through cold roll-forming of high-grade steel. The innovative H + N + H combination punching system allows a more rounded shape that increases poles twist and flexural resistance. SIKA steel posts for vineyards set themselves as the new point of reference for the market . Their open section guarantees good ventilation, avoiding condensation in the lower part in contact with the ground, while the high sheet thickness and hot dip galvanizing process carried out after forming are further technical features that give SIKA steel vineyard poles an exceptional resistance and durability.
SIKA steel posts for vineyards have been designed with the scope of meeting the most modern mechanizationrequirements; they incorporate the following combination of punching system:
° H-shaped slots at 500mm from the ground for easy fixing of irrigation pipes and rest wire
° N-shaped slots at the end of the pole in order to prevent accidental move-off of the wires
° H-shaped slots for easy installation of the lateral wires.
Another peculiarity of the slots is that they are aligned within the external edge of the poles, thus not being damaged by the mechanical grape harvesters. Thanks to the special shape that allows to withstand a high lateral load compared to the traditional steel poles, SIKA steel posts for vineyards can be planted at a higher distance the one from the other, thus keeping costs lower. Available in traditional (hot dip galvanized) steel, pre-galvanized steel, or Cor-ten, SIKA posts are not only the ideal support for vines from a technical point of view, but also the best investment for those grape-growers who look for quality certified products. steel vineyard post
We would like to emphasize that SIKA is the only Certified Company active in this field.
“BIG” VINEYARD INTERMEDIATE POSTS
Extra strong posts. H-shaped hooks on upper area of the post are used for movable wires (suitable for mechanical lifting of wires). N-shaped hooks on lower area of the post are used for fixed wires. An additional H-shaped hook at ground level for a movable wire or an irrigation pipe. Standard length 2800 mm; other lengths available on request. steel vineyard post
Sizes: 65 x 45 mm
Hooks: H+N+H (ground level)
“MEDIUM” VINEYARD INTERMEDIATE POSTS
This intermediate post is engineered with multi-ribs in order to grant high mechanical resistance despite its smaller size.
The slots are all “U” Shaped.
Posts of standard size 2.50 2.80 meters are available on stock. Other lengths are available on demand.
Sizes: 51 x 41 mm
Hooks: Only “U”

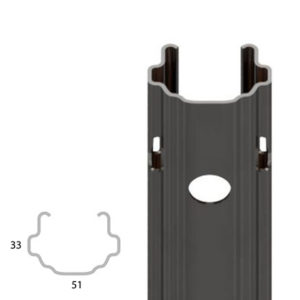

“SMALL” VINEYARD INTERMEDIATE POSTS
This intermediate post is engineered with multi-ribs in order to grant high mechanical resistance despite its smaller size.
The slots are all “U” Shaped.
Posts of standard size 2.00 2.50 meters are available on stock. Other lengths are available on demand.
Sizes: 51 x 33 mm
Hooks: Only U
VINEYARD END POSTS – MINI STRONG
This is the end post. It is a big post, suitable to replace the concrete one used in the past. It is produced with slots and holes in order to let the installation of all the accessories for fixing and tensioning the wires. On the bottom side, there are 3 holes suitable for fixing the anti-breakthrough plate. Available on stock 2,8 and 3,0 meter long
Sizes: 56 x 46 mm
Hooks: One only on top of post
VINEYARD END POSTS – STRONG
This is the end post. It is a big post, suitable to replace the concrete one used in the past. It is produced with slots and holes in order to let the installation of all the accessories for fixing and tensioning the wires. On the bottom side, there are 3 holes suitable for fixing the anti-breakthrough plate. Available on stock 2,8 and 3,0 meter long
Sizes: 68 x 56 mm
Hooks: One only on top of post
TIE ROD
It is stainless steel made, fixed on the strong post it has the function on tensioning the wire.
ANTI-BREAKTHROUGH PLATE
It is an easy and fast solution for fixing the posts on the ground.
After the installation of the Strong post on the ground, it is fixed using 3 latch-tightening screws.
It is produced in stainless steel or pickled steel with hot deep coating operation after forming.
